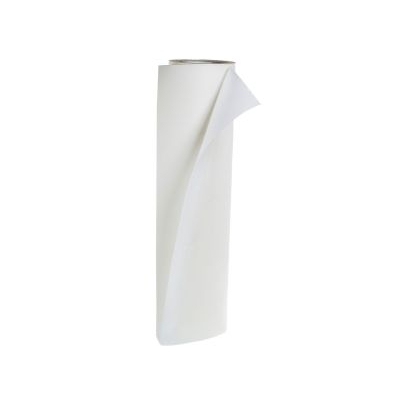

multilayer laminated support closed cell expanded polyethylene and embossed transparent bisiliconised polypropylene filmic liner. The support is reinforced on one side with transparent film.Suitable for flexographic wide-web printing and pre-print printing on cardboard, for medium thickness photopolymers, for mounting on sleeves and steel cylinders.
technical features
| Liner | transparent low-friction silicone embossed PP film |
| main support | white PE foam |
| secondary support | trasparent reinforcement film |
| Adhesive | natural rubber ( open and closed side) |
| thickness | 0,55 micron |
|
Peel on steel open side closed side |
5,5 N/25 mm 5 N/25 mm |
|
Rolling ball test open side closed side |
1cm 1,5 cm |
|
Quick stick on steel open side closed side |
5,5 N/25mm
|
| Shear open and closed side | 40 hrs and 30 hrs |
| Resistance to temperature |
+5°C /+60°C (long period) +5°C /+80°C (short period) |
| elongation at break longitudinal | 100 %min e 200 %max |
| elongation at break transversal | 100 %min e 200 %max |
|
tensile strength at break longitudinal transversal |
1800kg/cm2 min. e 3100 kg/cm2 1800kg/cm2 min. e 2800 kg/cm2 |
| Lenght | Width | Thickness | Delivery Times | Produts for Package | Product Code | Price | ||
|---|---|---|---|---|---|---|---|---|
| 23 mt | 455 mm | 0,38 mm | 4-5 gg | 1 | BC38 | €358.21 |
|
|
| 23 mt | 455 mm | 0,55 mm | 4-5 gg | 1 | BC55 | €358.21 |
|
|
